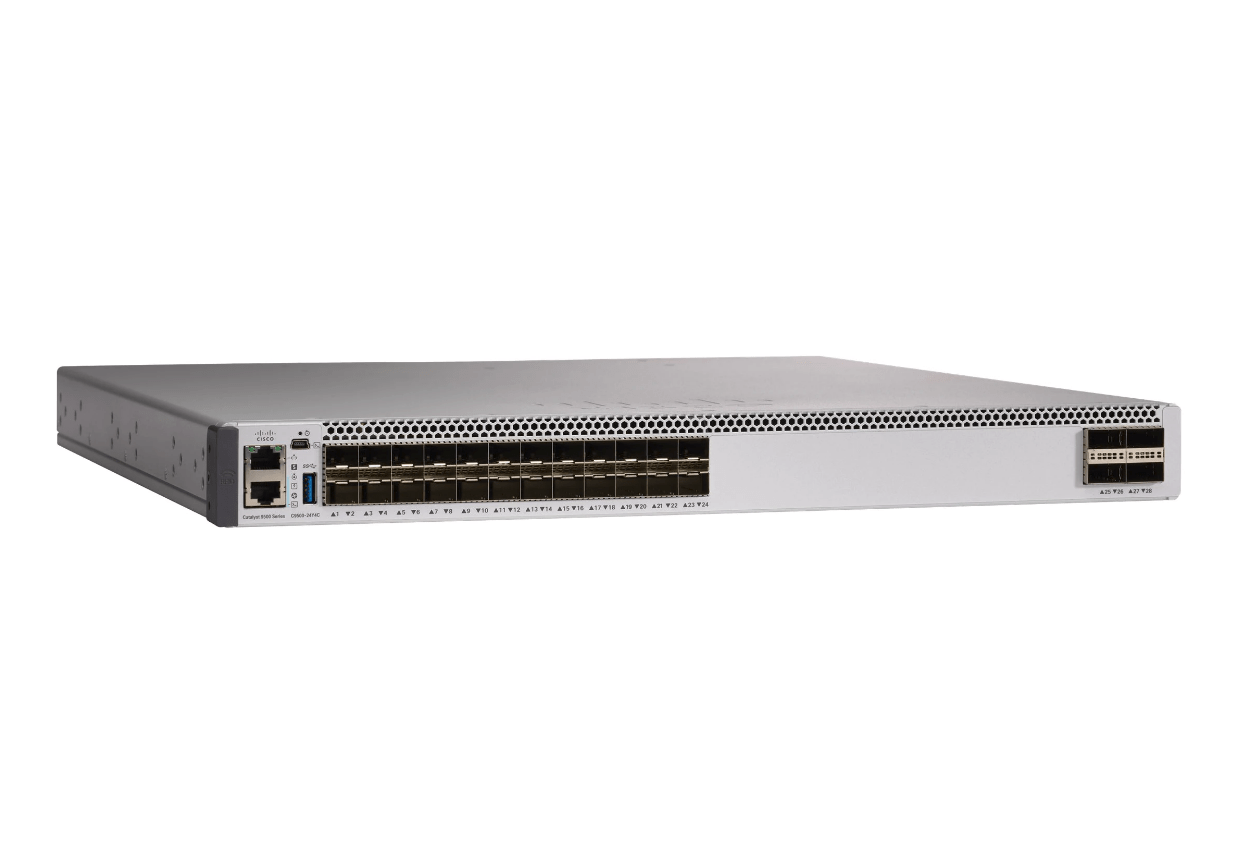

Cisco C9500-24Y4C-A Catalyst 9500 24x 25GB SFP28 Switch
C9500-24Y4C-A Overview
C9500-24Y4C-A is a Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Quick spec of C9500-24Y4C-AÂ
- Product Code : C9500-24Y4C-A
- Description : Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License
- Switching capacity : Up to 2.0 Tbps
- Forwarding rate : Up to 1 Bpps
- DRAM : 16 G
- Flash : 16 G
- Dimensions (H x W x D) : 1.73 x 17.5 x 18.0 in
- Rack units (RU) : 1RU
C9500-24Y4C-A Specification
- Switching capacity :Up to 2.0 Tbps
- Forwarding rate :Up to 1 Bpps
- Total number of MAC addresses :Up to 82,000
- Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) :Up to 212,000 indirect + direct Up to 90,000 host/ARP
- Total number of IPv6 routes :Up to 212,000 indirect + direct Up to 90,000 host
- QoS ACL scale :Up to 16000
- Security ACL scale :Up to 27000
- FNF entries :Up to 98,000
- DRAM :16 GB
- Flash :16 GB
- VLAN IDs :4000
- Total Switched Virtual Interfaces (SVIs) :4000
- Jumbo frame :9216 bytes
- Power Supply Selection :C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
- Dimensions (H x W x D) :1.73 x 17.5 x 18.0 in
- Rack units (RU) :1 RU
- Input voltage :90 to 264 VAC
- Operating temperature :32° to 104°F (0° to 40°C)
- Storage temperature :-4° to 149°F (-20° to 65°C)
- Relative humidity operating and nonoperating noncondensing :Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
- Altitude :Operation up to 13,000 feet at 40°C
- MTBF (hours) :336,780
